Application:To fill Powders like Nutraceutical powders, Electrolyte Powders, Spices, Atta (Flour products), Milk Powder, Coffee Powder, Instant Mix Powder, Sugar,

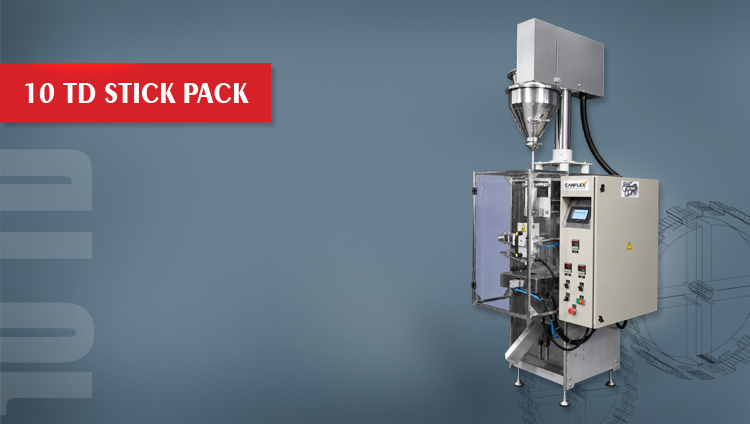

Description:Fully Automatic Vertical Form Fill Seal Packaging Machine can produce 4 or 3 side seal pouches. This machine can pack film width upto 220 mm without any change overpart
Product Range:Up to 200ml
| 1 | Feeding head | Auger filling system |
| 2 | Production Speed | 30 to 50 pouches per min (depends on product) |
| 3 | Machine control system | PLC. 7” HMI touch screen/ Servo Driven |
| 4 | Packing range | 1gm to 250gm |
| 5 | Film Width | 80 to 300mm |
| 6 | Pouch Width | Up to 140 |
| 7 | Pouch Length | up to 200mm |
| 8 | Film Thickness | 60 – 120 microns |
| 9 | Film Material | Laminated |
| 10 | Sealer heating system | Continues |
| 11 | Inner Core Dia. of Film Roll | 70mm |
| 12 | Outer Dia. of the film Roll | up to 300mm |
| 13 | Pouch Style | Center seal pillow pouch |
| 14 | Batch Cutter | Provider |
| 15 | Pneumatic air | 8CFM@7Kg CM² |
| 16 | Power Consumption | 4KW / Hour |
| 17 | Peak Power | 6 KW |
| 18 | Power requirement | Three Phase, 415 V, 50Hz |
| 19 | Film Guard mechanism | Auto stop when film is exhausted |
| 20 | Pouch Counter | Provided |
| 21 | Date printing Device | Optional |
| 22 | Photo Cell | Provided |
| 23 | Machine Dimensions in ‘mm’ | 1300(H) x 810(W) x 1200(Depth) mm |
| 24 | Net Weight | 600kgs (approx.) |
