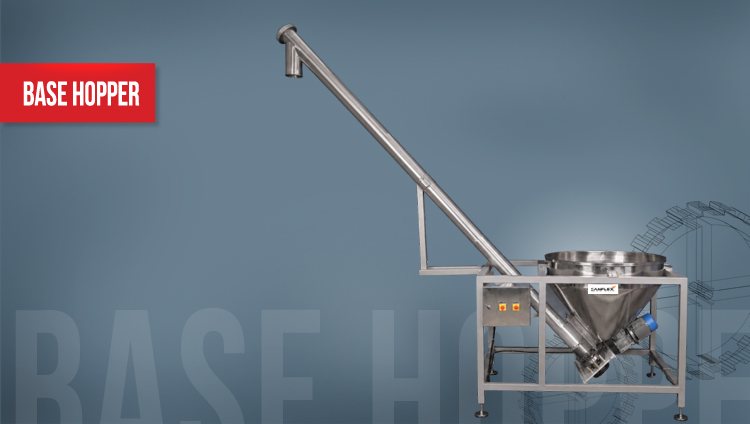

Canflex Base Hopper with Screw Conveyor

Application:

Description:

Product Range:

Technical Specification

1	Product delivery rate :	60 to 75 kg's / min.
2	Power Require :	3 Phase, 440 V AC 50 Hz, 2 KW
3	Power Consumption :	1.5 KW /Hr.
4	Ground Bin (Base Hopper) Capacity :	250 litrs.
5	Bin Height from ground level :	750 mm approx.
6	Spiral Screw Dia. :	140mm.
7	Serial pitch :	280mm
8	Screw drops height :	1850mm
9	Geared drive motor :	1.5 Hp / 3 phases, 415 V, AC 50 Hz.
10	Hopper construction :	SS 304 grade, 2mm wall thickness

Note: Due to R&D and products enhancements technical data are subject to change without prior notice.
